Vision-Language-Conditioned Keypoint Affordance Representation for Robotic Manipulation

Teaser Image — Figure 1: We propose a vision-language-conditioned keypoint affordance representation for robotic manipulation. Building on previous keypoint affordance methods [1], our method introduces a context-enriched prediction scheme that enables robots to reason about environmental contexts and current observations, facilitating more effective manipulation tasks.

Open-world object manipulation requires a comprehensive understanding of physical scenes and user commands to solve complex tasks. Recent advances in vision-language models (VLMs) have demonstrated capabilities in open-world manipulation problems. However, how to utilise them for fine-grained scene understanding and perform in-context reasoning for mobile manipulation remains an open challenge. For this purpose, this study explores using pre-trained VLMs to interpret scene context information and generate keypoint-based robot action affordance for mobile manipulation. Our method (KARM) enables a fine-grained semantic understanding of the robotic scene including its elements' spatial relationship in a zero-shot manner. By providing a long-horizon task instruction and the scene context to a pre-trained VLM, in-context and common-sense knowledge are combined as clues for the reasoning of logical task decomposition, serving as a key prerequisite for our keypoint-based affordance prediction pipeline. This pipeline extracts optimal manipulation points for the object of interest from observation images, which are consumed by a motion planner for planning and task execution. We design a set of real-world experiments on various manipulation tasks to showcase the superiority of the mixture of a context-based high-level task planner and a low-level robot controller compared to a non-context alternative.

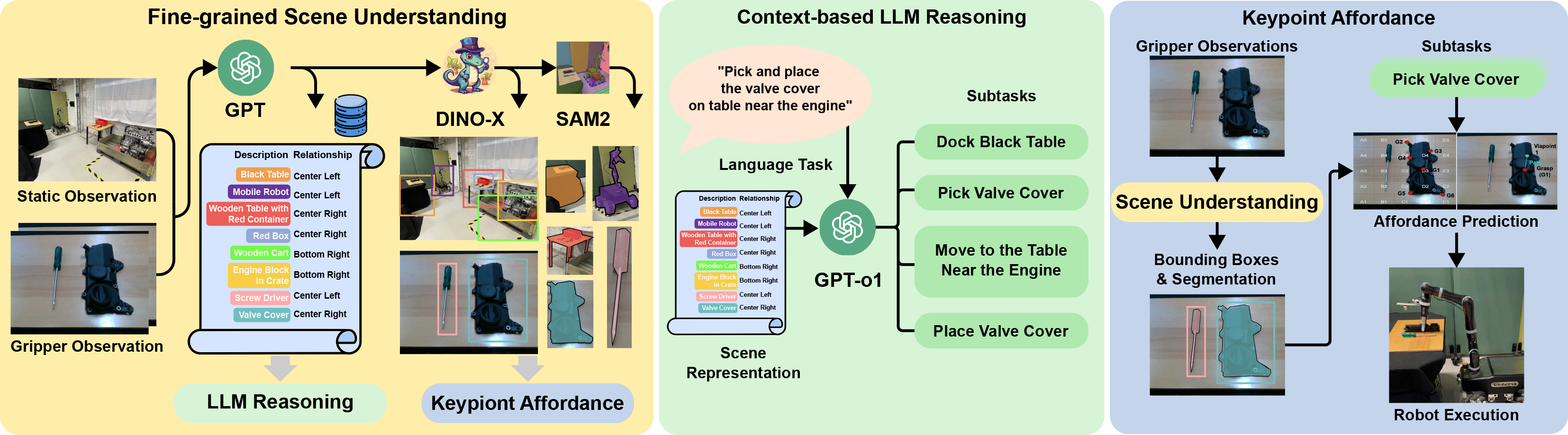

As shown in Figure 2, the vision-language-conditioned keypoint affordance representation method for robotic manipulation includes three core components. It starts with visual observations of a robotic scene. Prompted with language instructions, a pre-trained VLM (GPT-o1) is adopted for fine-grained scene descriptions, consistent elements detection, and their spatial relation representation. Then, given a language-based task, GPT-o1's advanced reasoning is utilised to perform control logic reasoning behind the language task and further decompose it into a sequence of optimal sub-tasks. For each sub-task and its annotated images, keypoint affordance representation is proposed to generate candidate keypoints for robot manipulation (e.g., grasping), followed by selecting and chaining optimal keypoints for robot path with the prompt by GPT-o1. Finally, the high-level robot path is linked to the low-level controller for task execution. The system is programmed with Python scripts that run on an Ubuntu-based PC with an RTX 4090 GPU.

Given the robotic scene image and language tasks, a VLM (GPT-o1) is prompted for scene description with fine granularity, its constituent element detection, and their spatial relation representation. The object is described by a mask, a text label and a 2D bounding box.

Given the scene image, the GPT-o1 is prompted by `describe this robotic scene, identify its constituent elements and their spatial relation', and it originally generates a long text description of the robotic scene. Here, the simplified description with the spatial representation and the highlight of the `subject'-`predicate'-`object' are `mobile robot (CL); 2) workbench with tools (L); 3) small wooden table with red container, possible plier and fastening tools (CR); 4) engine block in wooden crate (R); 5) safety markings (F)', in which `L, R, C, and F' represent `left, right, centre, and floor', respectively.

Given the language task `pick and place screwdriver on the table near the engine', the `object' is extracted and formulated as `screwdriver', `table', and `engine', and they are grounded with physical objects. Figure shows two tables and one engine on the scene are accurately detected and localised. However, the object of `screwdriver' cannot be detected. By querying the GPT-o1 with multiple scene images, it reasons the spatial relation between the object with the robotic scene. The response of the GPT-o1 pinpoints that the screwdriver is on the left-side table of the mobile robot. By grounding the image with the text prompt, the mask, the bounding box, and the text label of the screwdriver were created (the right part of Figure).

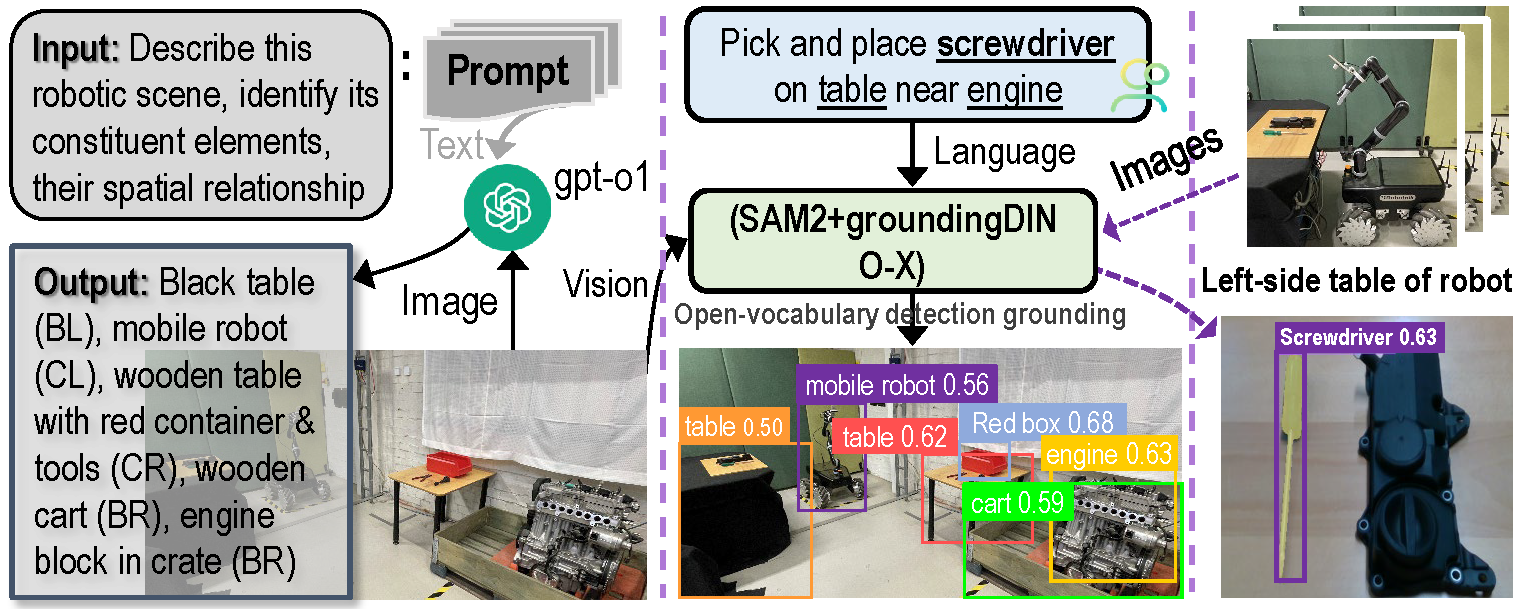

Overview Image — *Figure 3: Fine-grained robotic scene understanding, constituent element detection and their spatial relation description.*

Control logic reasoning behind language tasks with LLM

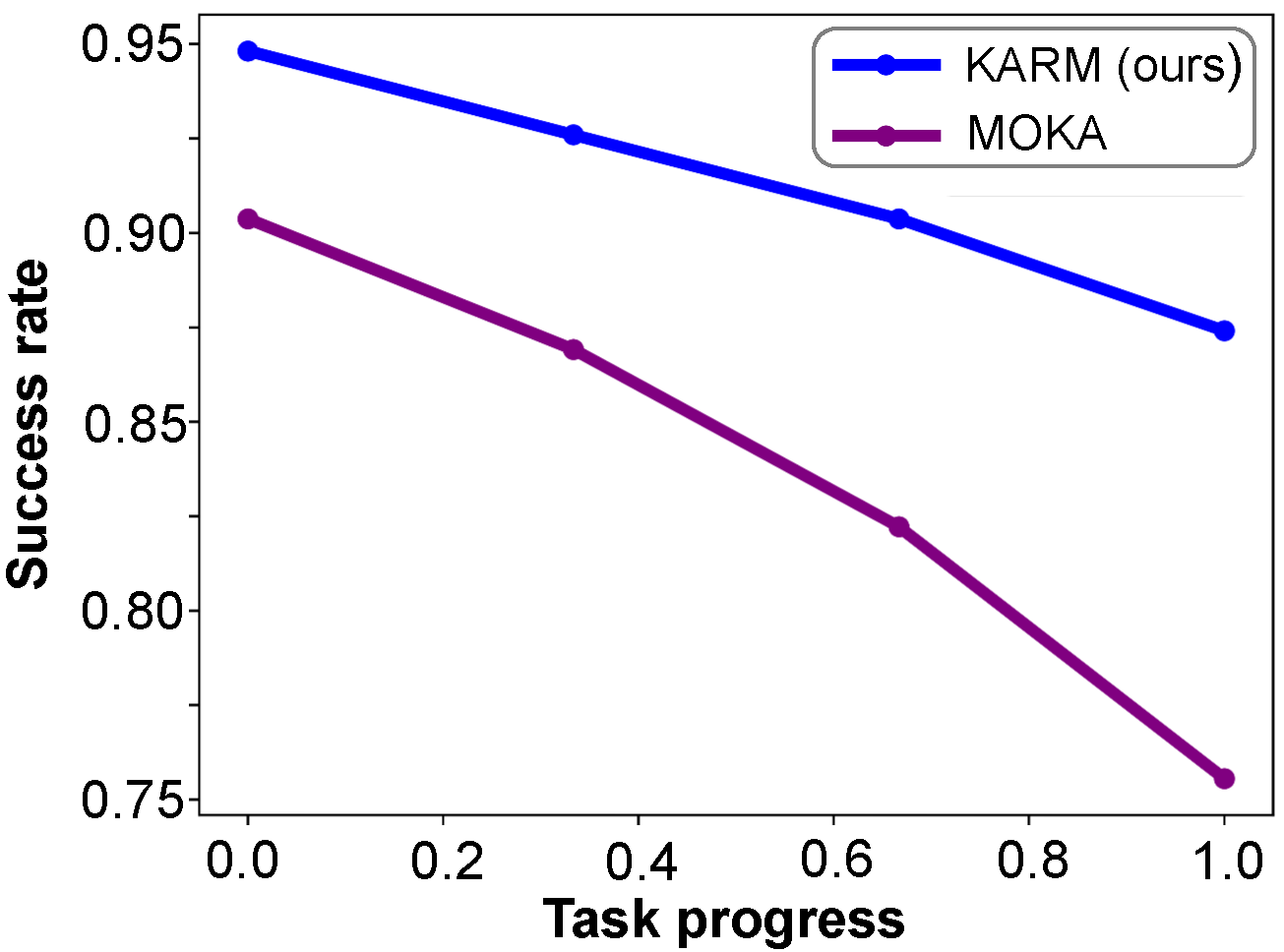

Our quantitative evaluation results across 9 tasks are illustrated in Figure 4. Each task is experimented with 15 trials for success rate measure where the object position is different at each trial. The robot sequentially executes subtasks generated by KARM or the baseline (MOKA). A subtask is deemed successful if the robot can complete it; otherwise, it fails, and no subsequent subtasks are attempted. For each language task, we record subtask success over 15 trials, normalise the results to [0,1], and then compute an average success rate across all tasks (shown in Fig. \ref{accuracy_performance}). KARM demonstrates better performance at each subtask of 9 language tasks, which illustrates consistent improvement by incorporating the context of control step reasoning. For most of tasks, both methods show similar performance at the execution of the early step of the task, but KARM demonstrates high consistency in the control steps and subtask execution compared with significant performance degradation of the baseline method, and this benefits from the proposed control logic reasoning of KARM, which translates the implicit information of the language task into an explicit representation.

Keypoint affordance representation for robot manipulation

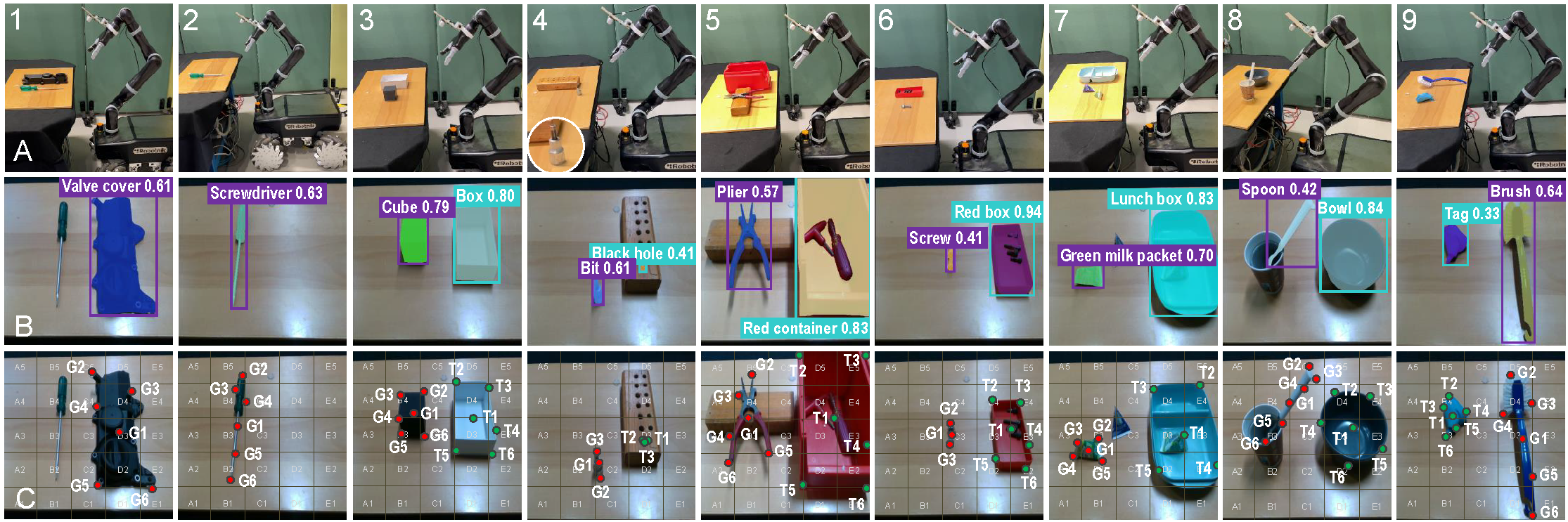

experimental task — *Figure 5: Experimental tasks and results.*

The pre-trained VLM is queried to identify the appropriate part of an object for grasping rather than annotating marks generated from SAM2. The parts of interest are segmented using segmentation networks to extract the segmentation masks, and then given the identified parts with masks, the pre-trained VLM is employed again to produce keypoint-based affordance representation for robotic manipulation. Given a pre-trained VLM, it starts with the k-th subtask. The inputs the language task, the input RGB images with part-level granularity, and the depth images at the k-th subtask, the prompt to produce the keypoint-based affordance representation, and it includes grasping, contact, and target keypoints, which are chained together to form a robot path. Figure 5 shows Row (A) experimental setup for 9 manipulation tasks; (B) Grounding text-based objects with the robotic scene with segmentation mask, bounding box, text label and probability; (C) Keypoint-based affordance representation where candidate keypoints for grasping (G: red pots) and target (T: green pots) objects are chosen; Column represents 9 manipulation tasks, namely (1) Pick the valve cover from the black table and place it on the table near the engine; (2) Pick the screwdriver from the black table and place it on the table near the engine; (3) Place the black cube into the white box; (4) Insert the socket bit into the black hole of the wooden holder; (5) Place the plier into the red container; (6) Place a screw into the red box; (7) Place green and purple milk packets into the lunch box; (8) Move the spoon from the paper cup and place it into the bowl; (9) Use the brush to clean the plastic rag. Our method demonstrates high consistency over scene understanding, object grounding and segmentation, and keypoint affordance representation over 9 tasks.

TABLE1 1: Results of control logic reasoning behind language tasks
Task	Grasping object	Target object	Step	Subtask/Motion direction
1	Valve cover	Table near engine	4.	1. Dock in front of the black table./-; 2. Pick the valve cover./Upward; 3. Move to the table near the engine./-; 4. Place the valve cover on the table./Downward.

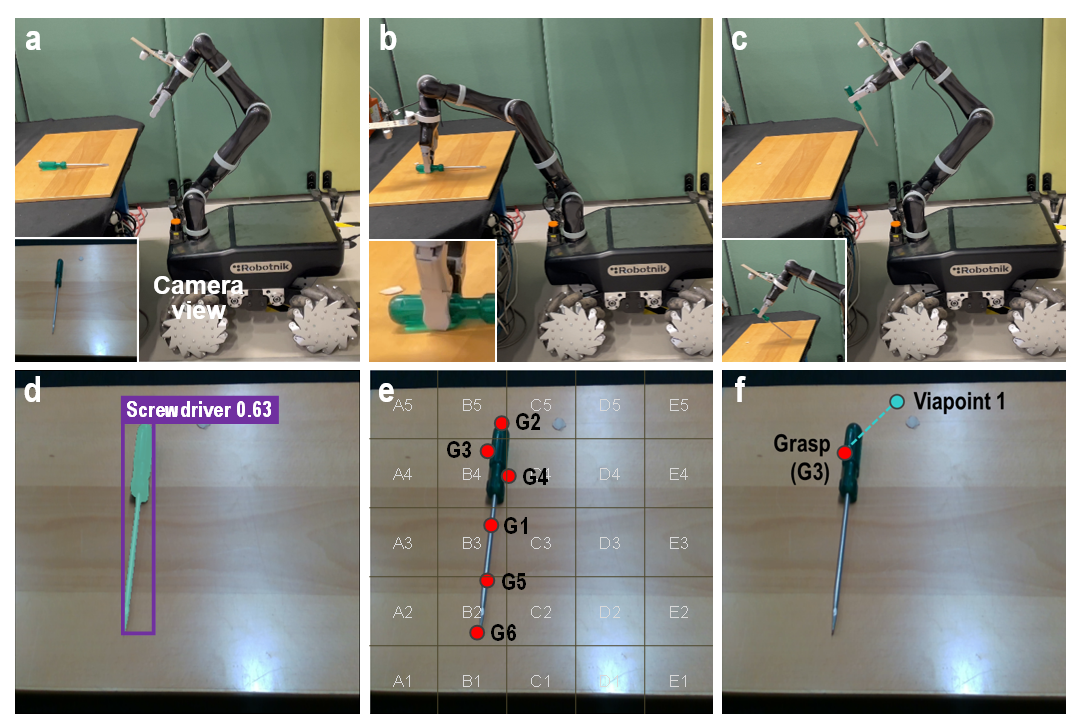

2	Screwdriver	Table near engine	4.	1. Dock in front of the black table./-; 2. Pick up the screwdriver./Upward; 3. Move to the table near the engine./-; 4. Place the screwdriver on the table./Downward.

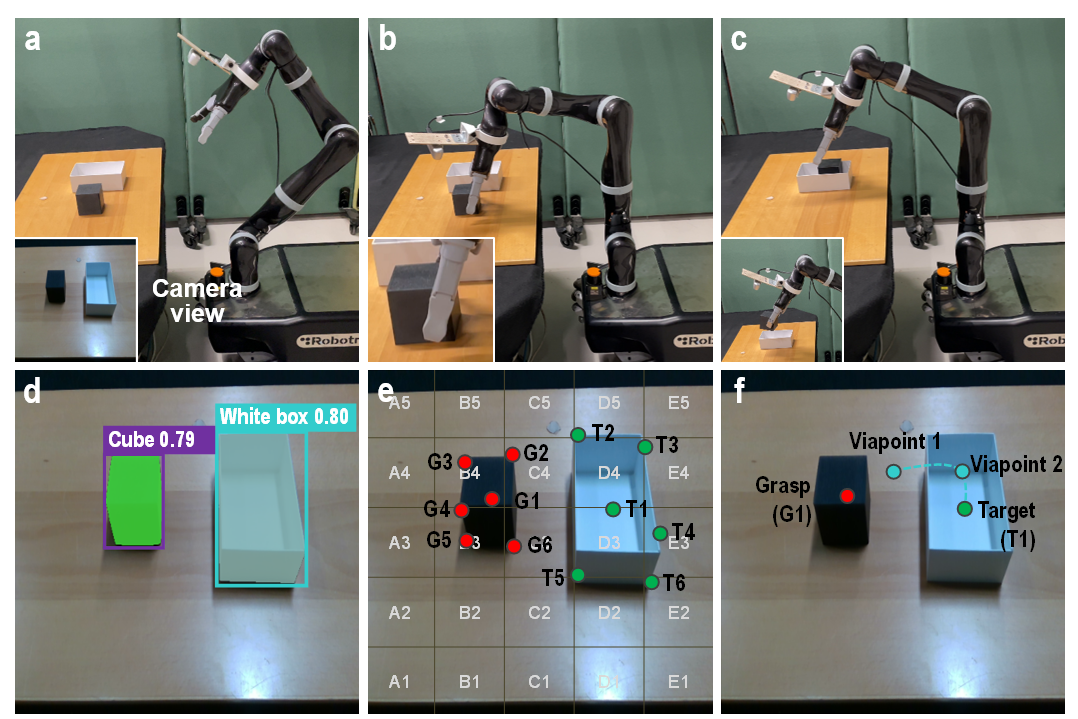

3	Black cube	White box	2.	1. Pick up the black cube./upward; 2. Move the black cube onto the white box./from left to right.

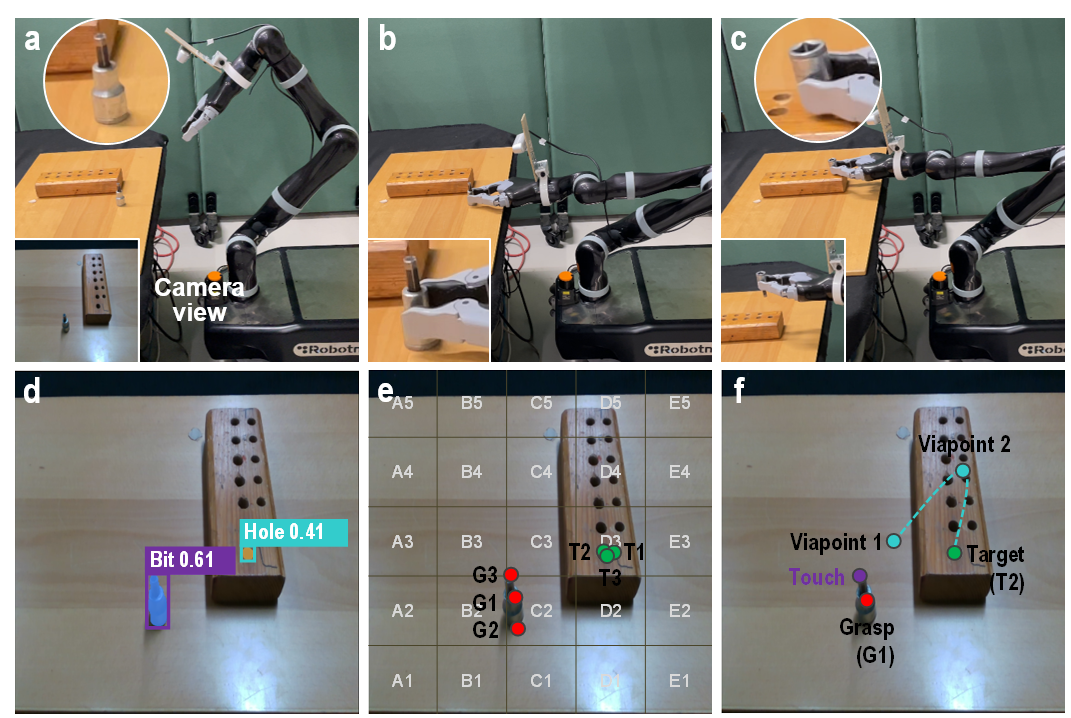

4	Socket bit	Black hole	3.	1. Pick up the socket bit./-; 2. Move the socket bit over the block./Upward; 3. Insert the socket bit into the black hole./Downward.

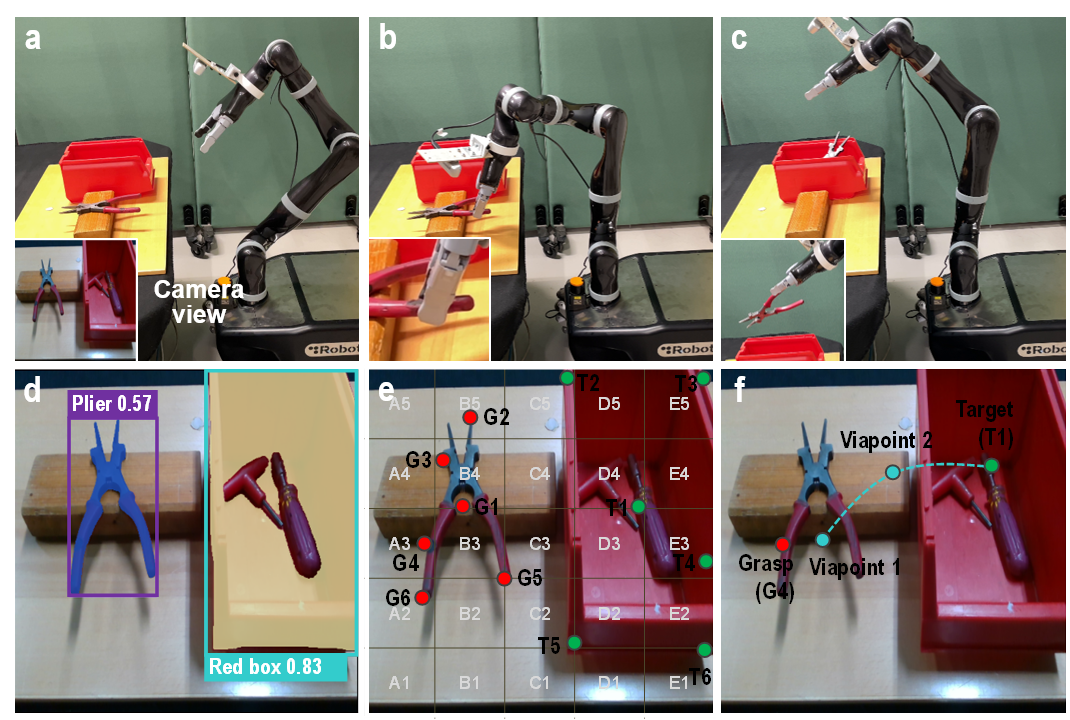

5	Plier	Red container	2.	1. Grasp the left handle of the plier./Upward; 2. Move the plier onto the red container./to the right.

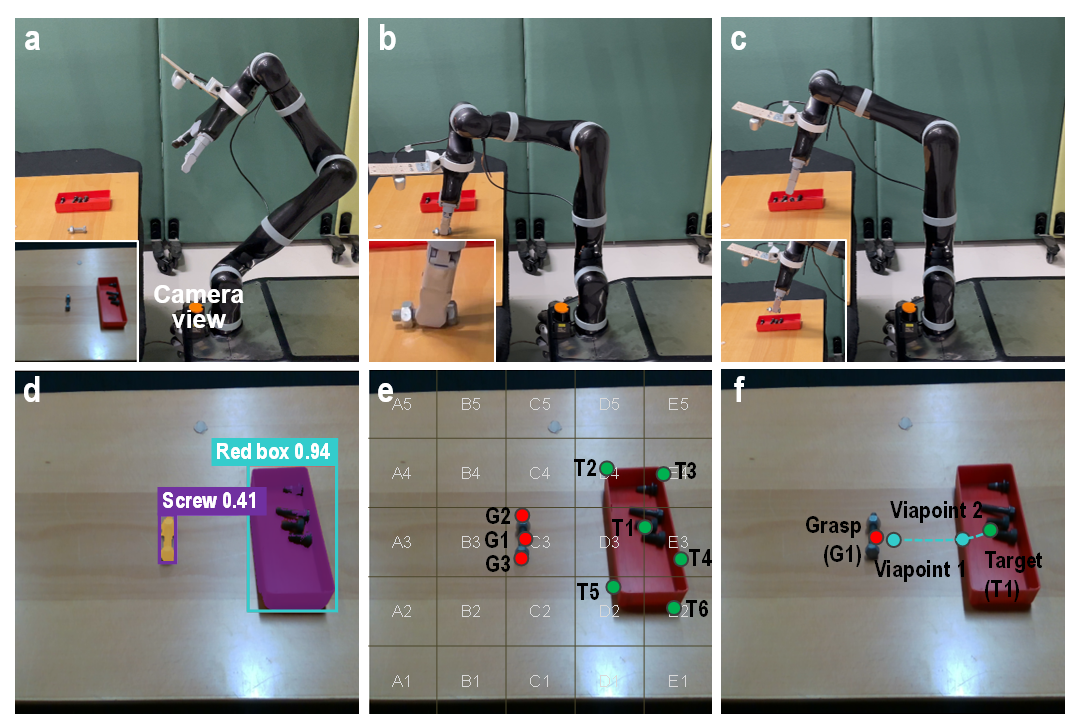

6	Screw	Red box	2.	1. Pick up the screw./-; 2. Move the screw over the red box and place it inside./to the right.

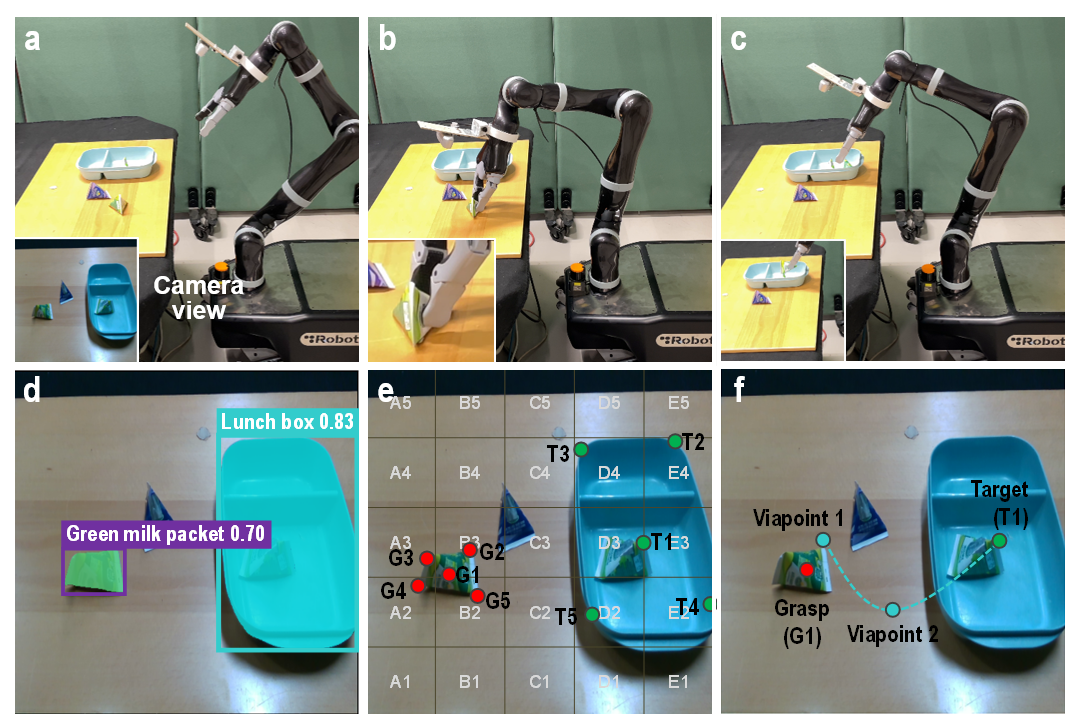

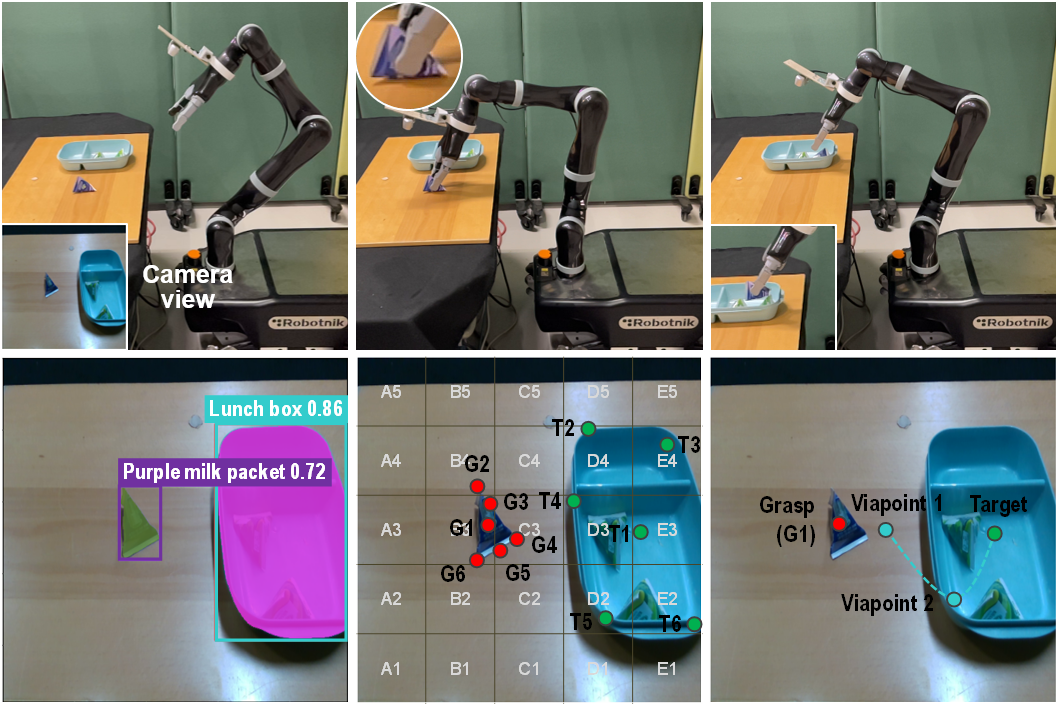

7	Green milk packet & purple milk packet	Lunch box	4.	1. Pick up the green milk packet/upward; 2. Move the green milk packet onto the lunch box/to the right. 3. Pick up the purple milk packet/upward; 2. Move the purple milk packet onto the lunch box/to the right.

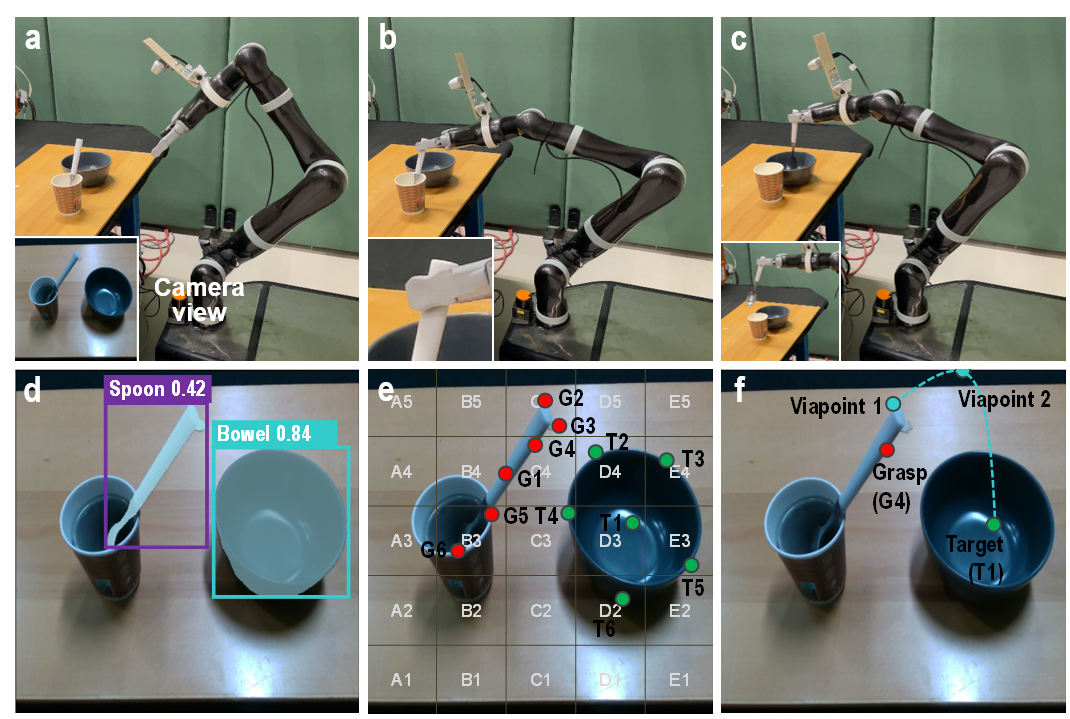

8	Spoon	Bowl	3.	1. Pick up the spoon from the cup/upward; 2. Move the spoon over the bowl/from left to right; 3. Place the spoon into the bowl/downward.

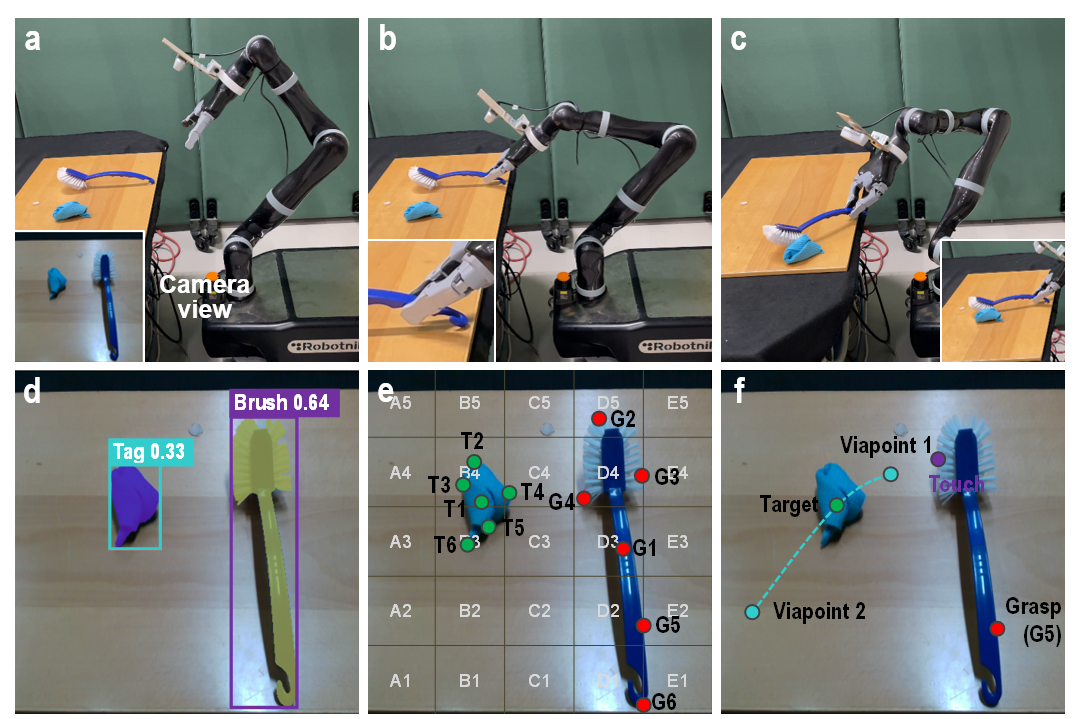

9	Brush	Plastic rag	2.	1. Grasp the brush by the near-end part/-; 2. Use the brush to sweep the tag/from right to left.

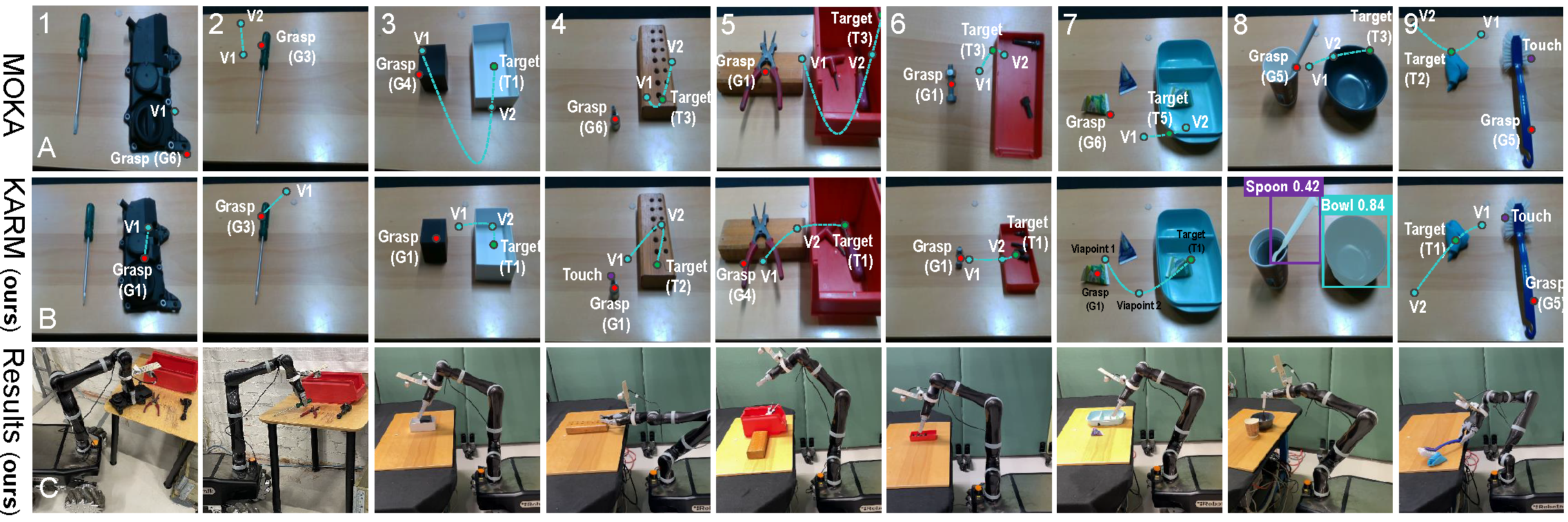

Figure 6 shows the experimental results of our methods and baseline mthod: Rows (A) and (B) Optimal grasping and target keypoint selection and robot path (cyan lines) of our method (KARM) and MOKA [1] (V indicates ‘viapoint’); (C) Results of our method over 9 tasks performed by a robot. MOKA [1] sometimes struggled to predict consistent and logical viapoints and target points (Tasks 3, 4, 5, 8) which led to failures of the manipulation. However, our method performed in-context subtask reasoning, which provided a more logical subtasks decomposition for affordance prediction, which greatly improved the prediction consistency and robustness.

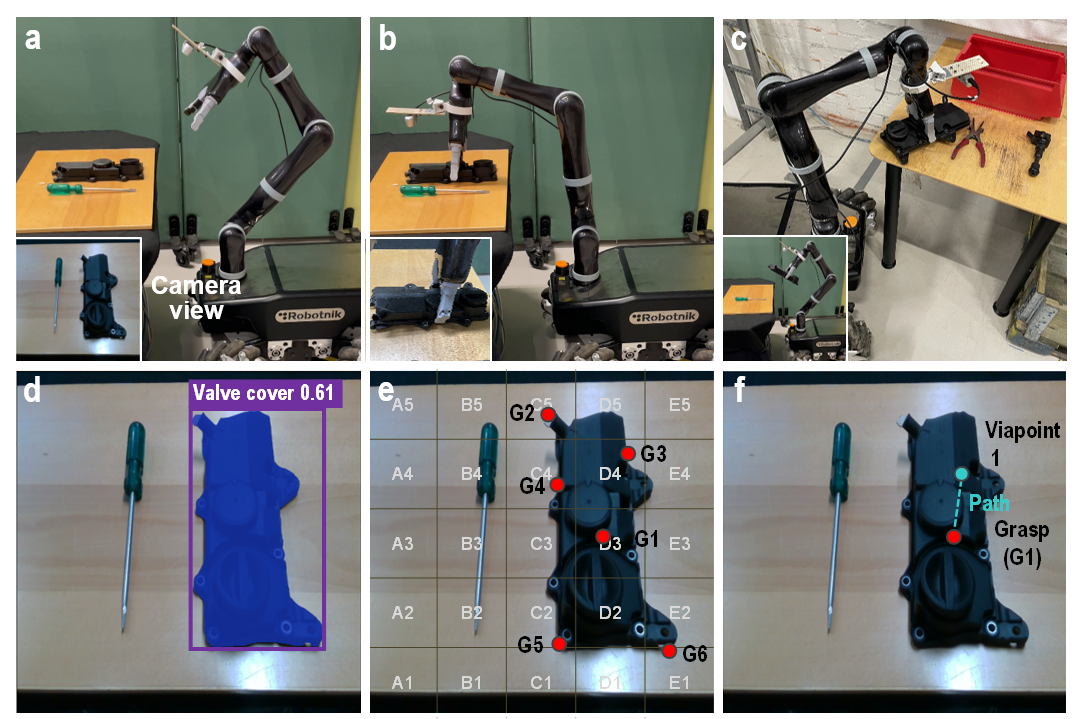

Language task: "Pick the valve cover from the black table and place it on the table near the engine."

Figure (a): Experimental setup and execution of Subtask 2; (b) Robot action: robot is instructed to grasp valve cover via grasping keypoint affordance (G1); (c) Robot performing subtasks 3 and 4: robot takes valve cover to move to the table near engine, and places it on the table. (d) Object detection and segmentation; (e) Candidate keypoints for object manipulation: (f) Keypoint affordance-based robot path plan.
